Our technology consists in different ultrasound data acquisition platforms that can be combined, customized and scaled to address the needs of each specific customer and application.

  • Single Element Single Channel (SESC)

  • Multiplexers (MUX)

  • Multi Element Multi Channel (MEMC)

  • Sensors, Actuators & Transducers (SAT)

  • Cables, Interconnections & Packaging (CIP)

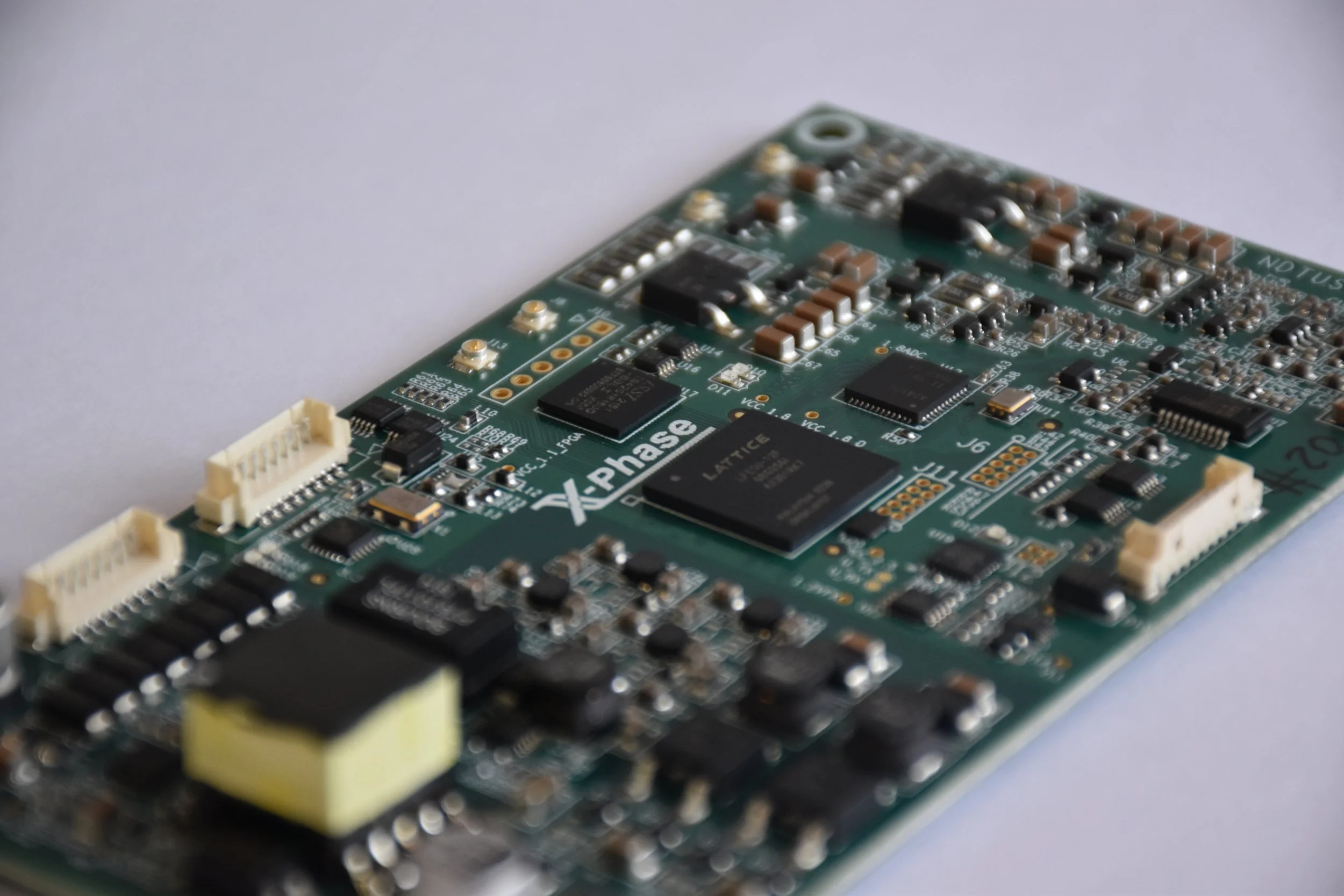

SINGLE ELEMENT SINGLE CHANNEL (SESC)

Specifications

  • ADC: 125 Msa/s 12bit

  • Bandwidth: 1-30 MHz

  • TX Channels: 1 ( 2 optional)

  • TX Pulser: Mono or Bipolar

  • TX Amplitude: Up to 180Vpp

  • RX Channels: 1

  • LNA+VGA: −4.5 dB to 55.5dB

  • Memory: 8192 point / PRI

  • Communication: 100Mbit Ethernet OR USB3

  • Power: Passive POE 12-24VDC

  • Modes: Pulse-Echo (PE) and Through Transmission (TT) with 2 channels.

  • I/O: Optional Input and Output synchronization signals

  • I/O: Control of external multiplexer board

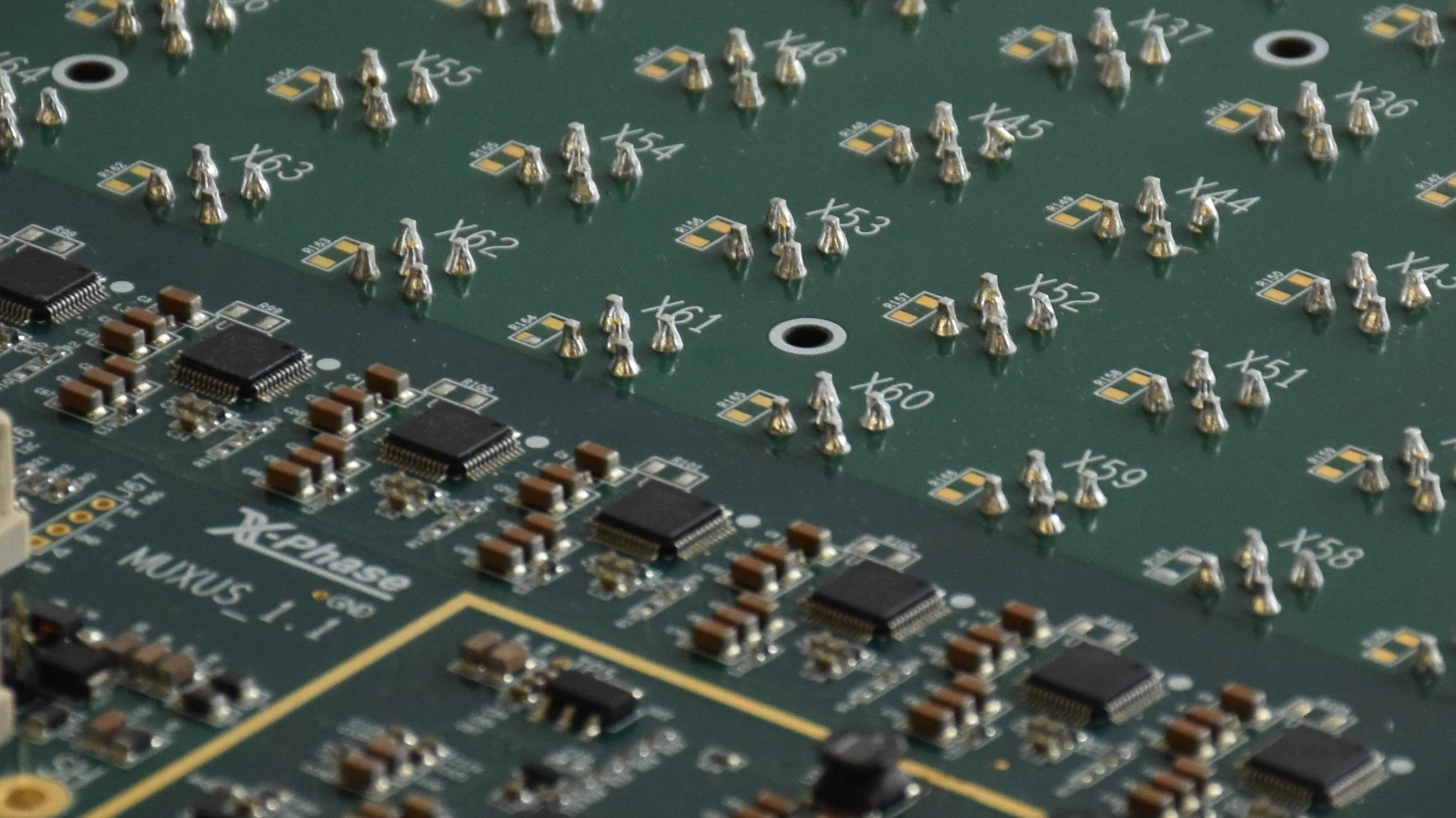

MULTIPLEXERS (MUX)

Specifications

  • 1:64 ( Other configurations possible )

  • Max Voltage: 180Vpp (-90/+90. -180/0, 0/180)

  • Bias Voltage: Programmable

  • Switching time: < 30uSec

  • Synchronization Signals

  • Programmable sequences

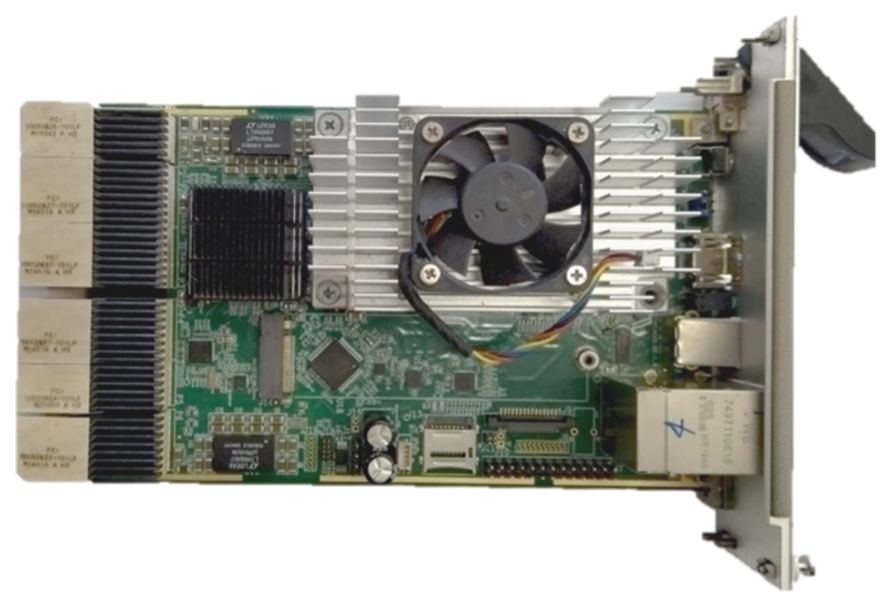

MULTI ELEMENT MULTI CHANNEL (MEMC)

ULTRASOUND Front-end

  • Up to 256 independent transmitters and receivers

  • 5 level square wave transmitters up to +70V -70V with 5ns resolution

  • Input analog bandwidth: 1-16MHz

  • Sampling frequency:  40MSa/s

  • Programmable dynamic beamforming

DIGITAL  Back-end

  • CompactPCI® Serial  compliant

  • NVIDIA GPU Module Jetson TX2

  • Linux on board

  • 1 Gb ethernet, 2x USB2 , WiFi ready, M2 disk storage

SENSORS, ACTUATORS & TRANSDUCERS (SAT)

Ultrasound Sensors, Actuators and Transducers (SAT) are always specific to each application and we work with several trusted suppliers to develop and source the best ones for the job, and our platforms can support from single element to arrays built with bulk piezo materials or Micromachined-Electro-Mechanical-Systems (MEMS).

CABLES, INTERCONNECTIONS & PACKAGING (CIP)

Cables, Interconnections and Packaging (CIP) play a crucial role in the performance, size and cost of each ultrasound digital data acquisition system. As for the SAT, we work with different trusted suppliers to identify the best solution for each project.
